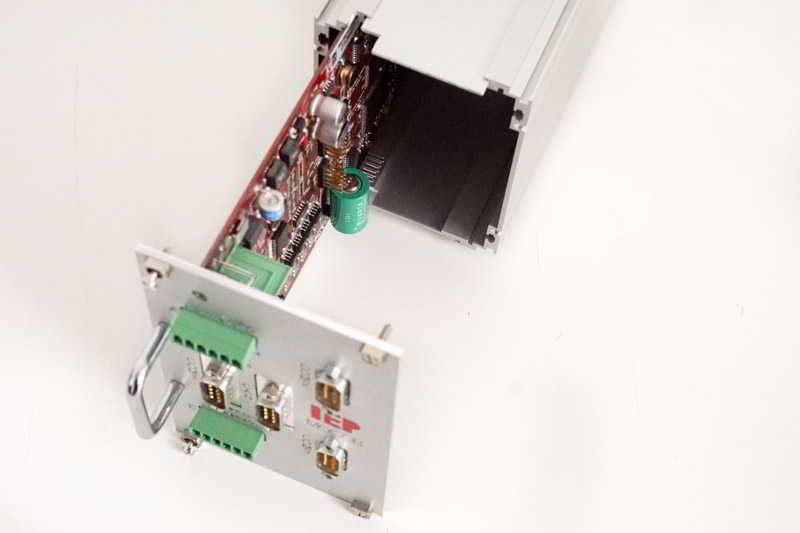

As an OEM system, the MOCOB-V3 is used wherever new functionality is created through the
inexpensive connection of individual, intelligent measuring systems and some additional
input and output functions.
The digital inputs/outputs are controlled via the TPU of the MC68332. In addition to the
simple I/O functionality, the inputs can also be used as fast pulse counters, for frequency
measurements or for position detection with incremental encoders.
The outputs can generate fast output signals via the PWM function of the TPU, also
depending on the input states.

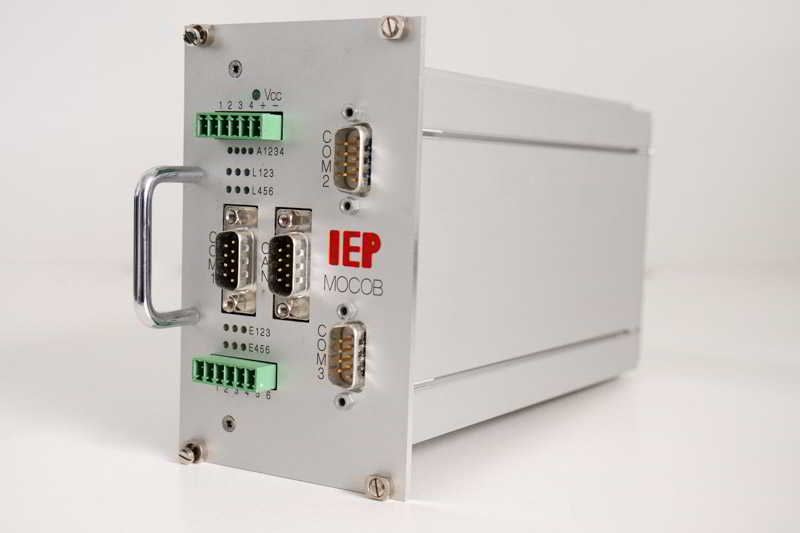

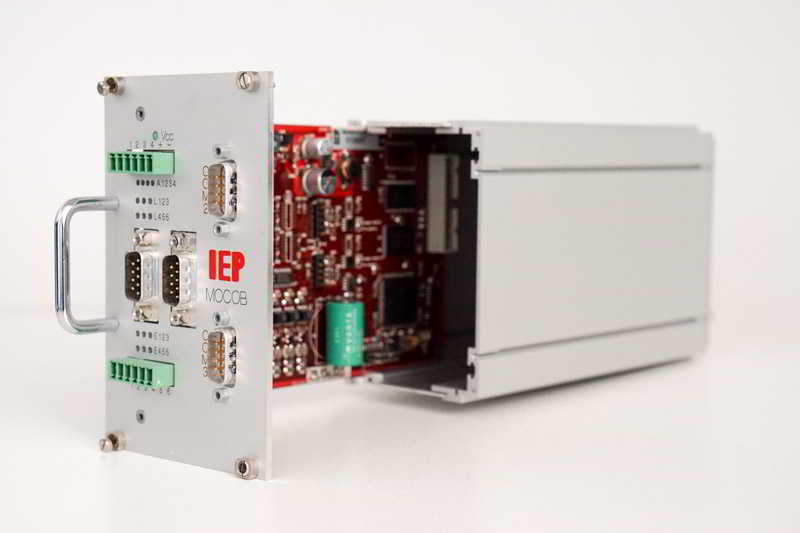

The states of all inputs/outputs are indicated by LEDs.
The 3 serial interfaces can be designed differently. The CAN bus is galvanically isolated
and allows baud rates up to 1MBaud.
The real-time operating system
RTOS-UH
is standard. Programming is done in
ANSI-C,
PEARL 90 or in
IEC 61131-3.
Digital Inputs |
6x gal. insulated, 24V, on TPU |
Digital Outputs |
4x high-side 24V / 0.4A short circuit proof |
Serial Ports |
2x RS-232 5-Draht, 1x RS-232 3-Draht
1x RS-232 5-Draht, 1x RS-232 3-Draht, 1x RS422/485
1x RS-232 5-Draht, 2x RS-422/485
up to 115KBaud |
Networking |
CAN-Bus up to 1MBaud |
Expansion Socket |
8 Data, 6 Address, 3xCS, R/W |
Supply voltage |
9-30V / 200mA |
Size |
160 x 100 x 61 mm |
