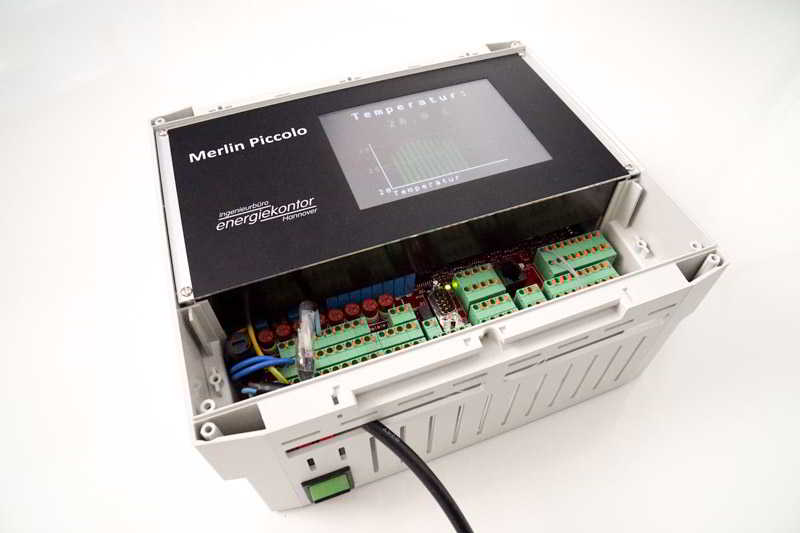

The UCT is a small controller for on-site use in the low-voltage range, e.g. for heating and
air-conditioning controls. A TFT display with touch screen is used for visualisation and operation,
the CAN bus integrates the UCT into a control network and enables the connection of further I/Os.
This allows the UCT to be used both independently as a stand-alone controller and in combination
with a larger system.

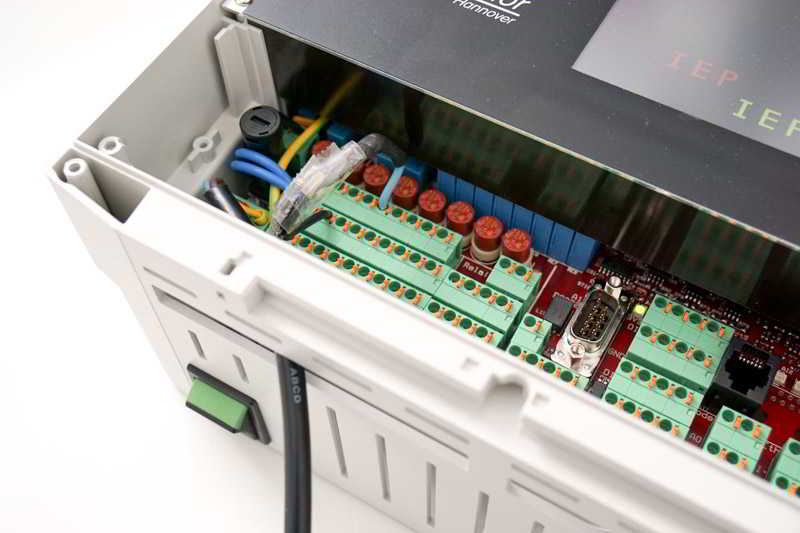

The integrated power outputs enable the direct control of e.g. pumps or similar actuators via
solid-state relays or relays with conventional contacts. The analog inputs can be configured via
component variants and can be used, for example, for the direct connection of temperature sensors.
The real-time operating system
RTOS-UH
is standard. Programming is done in
ANSI-C,
PEARL 90 or in
IEC 61131-3.
Data acquisition |
16x analog input Pt1000 / 0..10V / 0..20mA etc. 10 Bit resolution |
Digital Inputs |
8x 24V for detection of switches |
Analog Outputs |
2x 0..20mA Current output, alternative 0..10V |
Power Outputs |
4x Solid-State-Relais 230Vac/2A 4x Relais 230Vac/2A
2x Relais Change-over contact potential-free 2x Relais NO contact potential-free |
Networking |
CAN-Bus up to 1MBaud |
Handling |

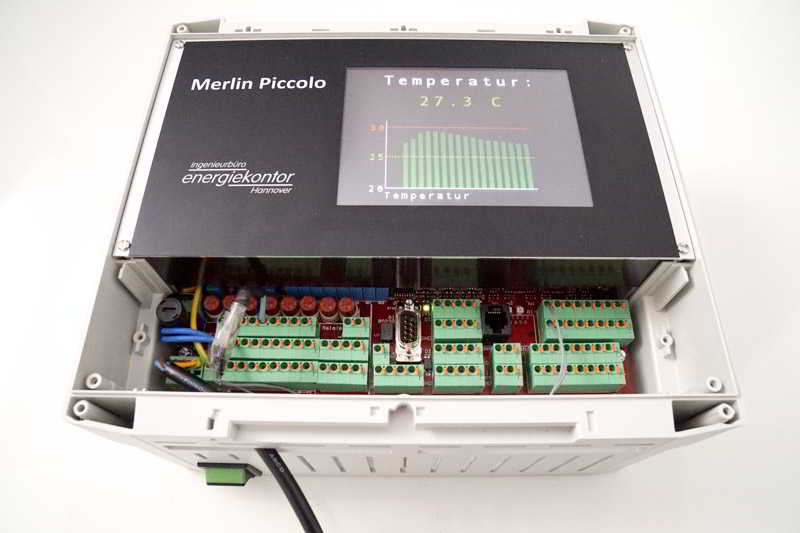

TFT-colour display 5″(12,5cm) 320x240 Pixel with Touchpanel |
Option |
Extension socket for modem or similar |
Supply voltage |
100-230 Vac / max. 16A; internal consumption 10W |
Size |
260 x 230 x 120 mm |
