The RTP1 provides a comprehensive set of interfaces for process control. In addition to the
analog and digital inputs/outputs, various interfaces are available for coupling and networking.
The direct connection of an LCD screen with touch function enables convenient on-site operation.
The integrated signal transmitter provides acoustic feedback.
A USB port and a slot for a µSD card offer the simple connection of mass storage devices, e.g.
for storing protocol data or updating programs.

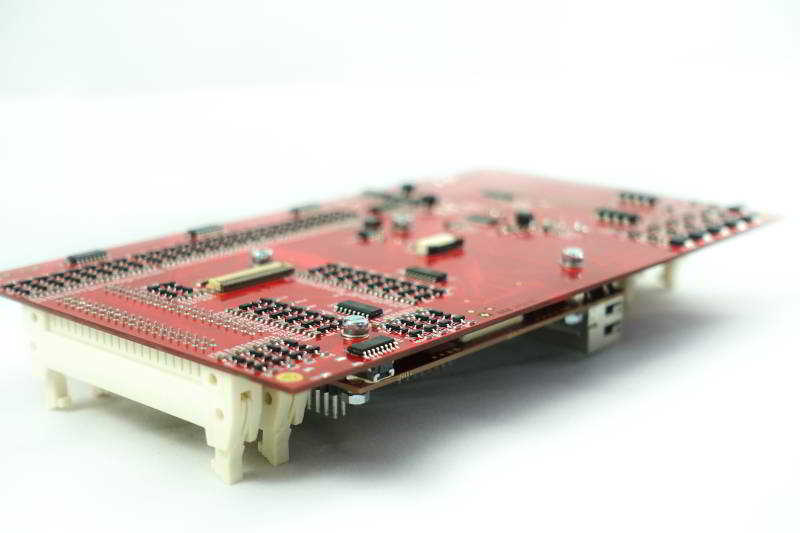

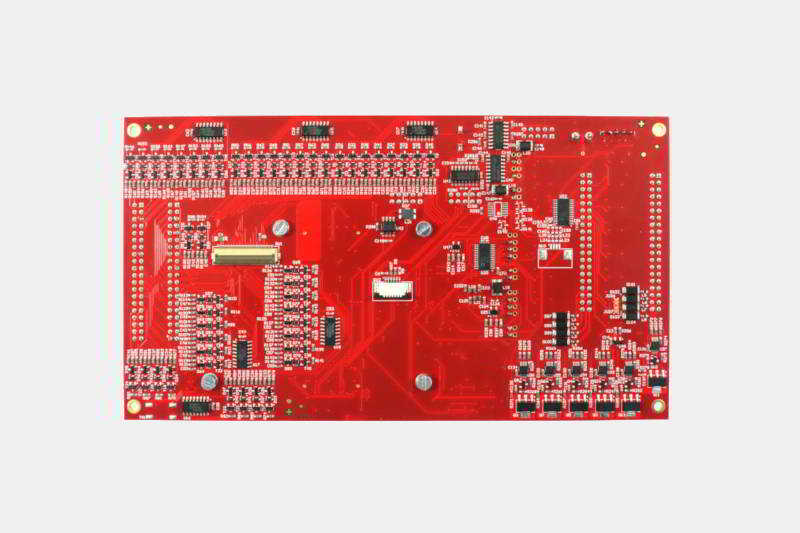

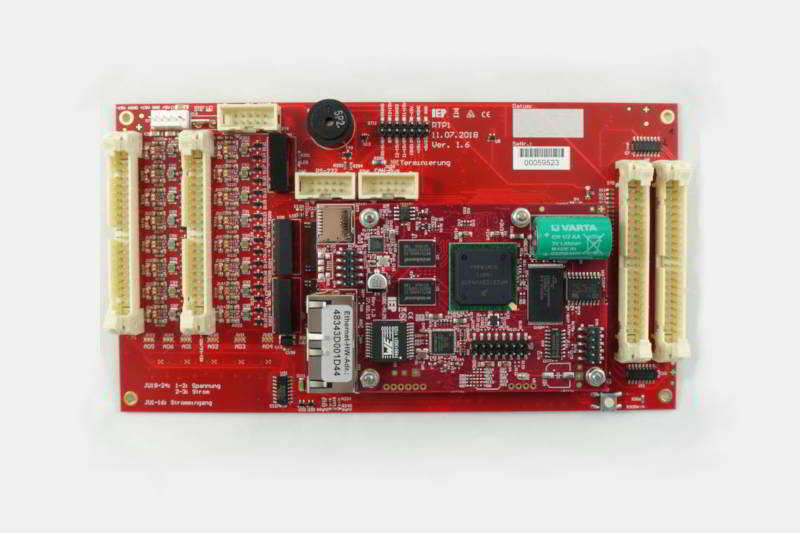

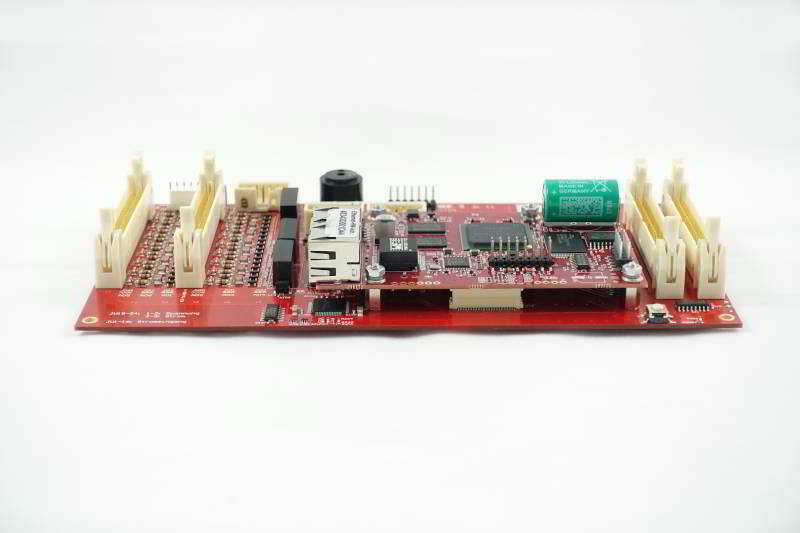

The RTP1 uses the CORE-5125 as processor core. It can be mounted
with the display directly into a 19" front panel.
The real-time operating system
RTOS-UH
is standard. Programming is done in
ANSI-C,
PEARL 90 or in
IEC 61131-3.
Data acquisition |
16x analog input 0..10V / 0..20mA 24 Bit resolution |
Analog Outputs |
8x 0..10V, 12 Bit resolution
6x thereof switchable to 4..20mA
2x individually galvanically isolated |
Digital Inputs |
16x TTL level |
Digital Outputs |
16x 5V / 100mA |
Digital inputs/outputs |
32x channels can be used as input or output |
Serial interfaces |
2x RS-232 5-wire, up to 115KBaud 1x RS-232 5-wire, up to 115KBaud, gal. insulated |
Networking |
2x Ethernet 10/100MBaud CAN-Bus up to 1MBaud |
Handling |
TFT-colour display 7″(17,8cm) 800x480 pixels with capacitive touch |
Mass Storage |
USB, µSD-Card |
Signal transmitter |
1.9 KHz; 85dB(A)/10cm |
Supply voltage |
5V / max. 3A; internal consumption 10W ±15V / 300mA |
Size |
200 x 110 x 30 mm |
