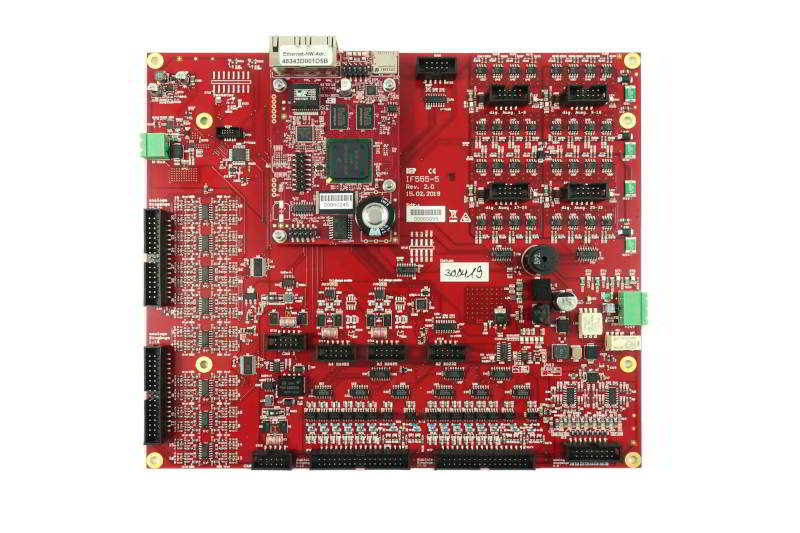

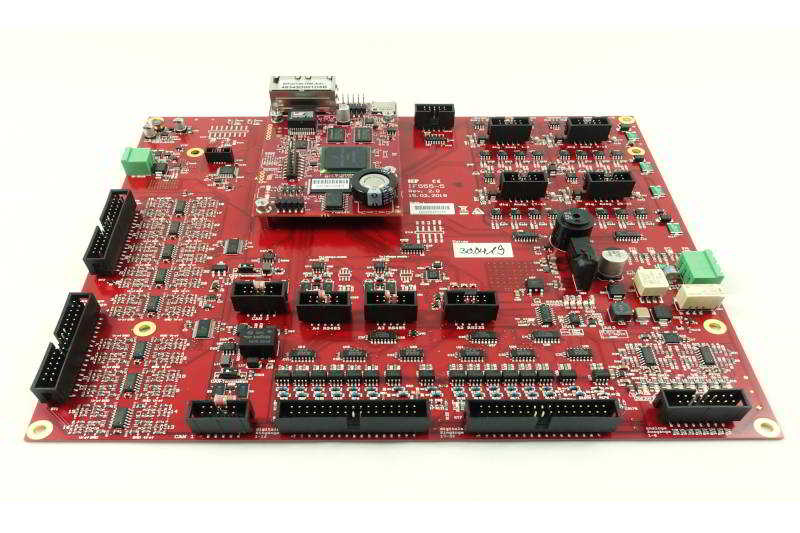

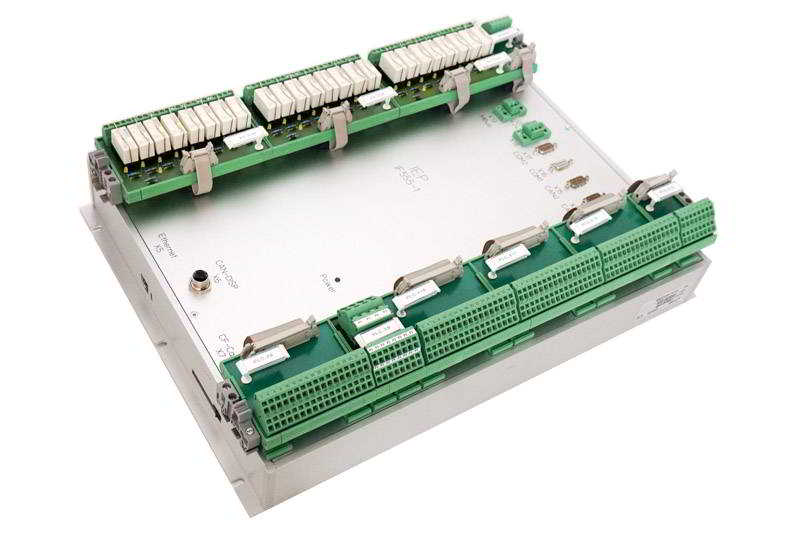

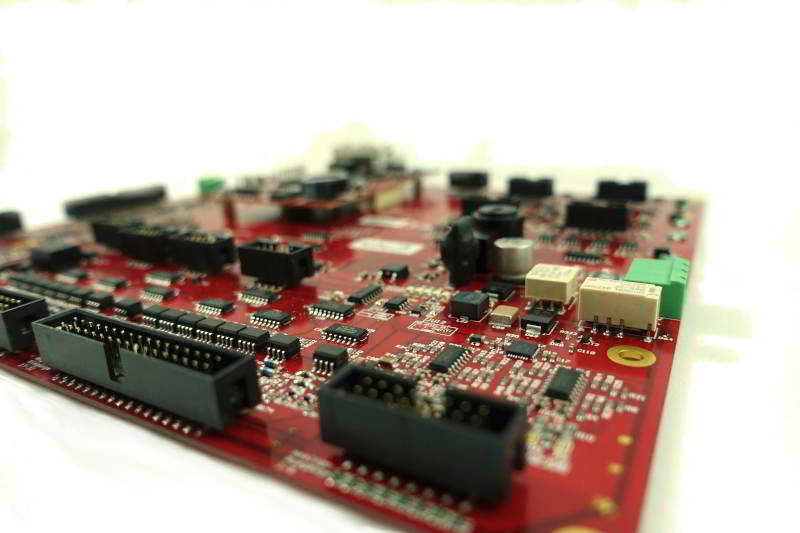

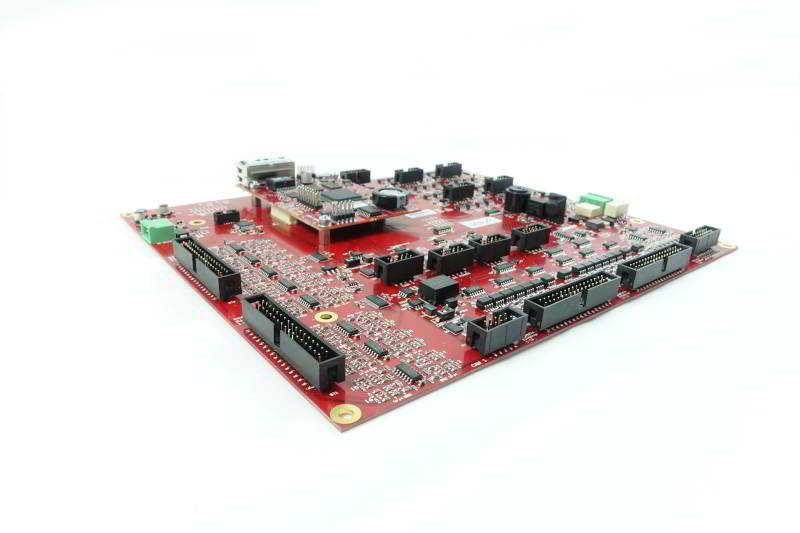

Industrial I/O and high computing power - the IF555-5 based on the
CORE-5125, with universal I/O and standard
interfaces for buses and networks is an all-round package for power-hungry
applications in measurement and control technology.
So e.g. a complete Combined heat and power unit incl. engine control can be regulated and
operated with the IF555-5.
Of course all features of the CORE-5125, like µSD card,
USB, etc. are available.
The integrated M-Bus (meter bus) master enables the integration of up to 50 slaves. This allows e.g.
Cost-effective recording of consumption values in building management systems.
The real-time operating system
RTOS-UH
is standard. Programming is done in
ANSI-C,
PEARL 90 or in
IEC 61131-3.
Data acquisition |
32x analog input Pt1000 / 0..10V / 0..20mA etc. 12 Bit resolution |
Analog Outputs |
8x 0..20mA Current output, alternative 0..10V |
Digital Inputs |
32x gal. isolated, 24V, for switch |
Digital Outputs |
32x 24V / 0.4A short-circuit proof for inductive loads |
Networking |
2x Etherneth 10/100 MBit 2x CAN-Bus up to 1MBaud 3x RS-232; 2xRS-422/485 |
Metering |
M-Bus Master for max. 50 slaves |
Supply voltage |
24 V / 200mA |
Size |
257 x 222 x 50 mm |
