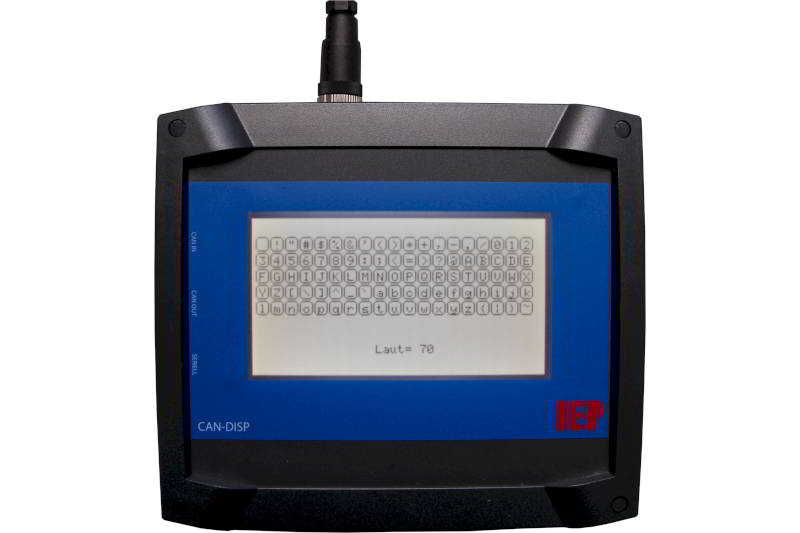

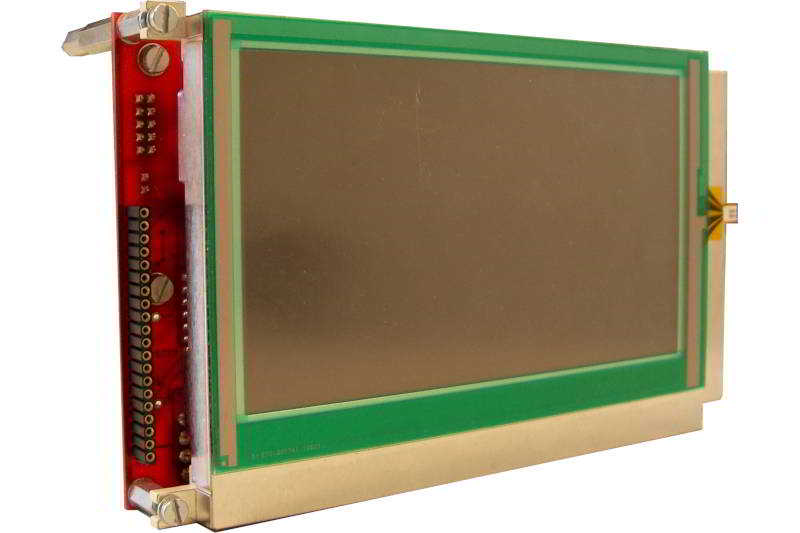

The CAN-DISP is a robust control unit for field operation in the control area. The high-contrast
5.5" LCD with 240x128 pixels is easy to read even under unfavourable lighting conditions. A robust
front foil protects the display even when used in dirty environments.
A touch panel and a connection for matrix keyboards are available for input. An integrated
loudspeaker for acoustic signals can be controlled in frequency and volume.
The touch panel can be used as a keyboard replacement as well as for graphic input.
The CAN bus can be operated with baud rates up to 1MBaud. There are 3 options available for
communication with the CAN-AI8-10 module: On the one hand a simple CAN protocol, on the other hand
a CANopen® slave implementation, alternatively a
DeviceNet® slave.
Display |
Based on the T6963 Controller |
Keyboard |
Matrix up to 8x8 keys |
Touchpanel |
resistive 4-wire |
Backlight |
Voltage converter for backlight |
Networking |
CAN-Bus up to 1MBaud |
Supply voltage |
8-30Vdc / 200mA |
Size |
160 x 100 x 50 mm |
