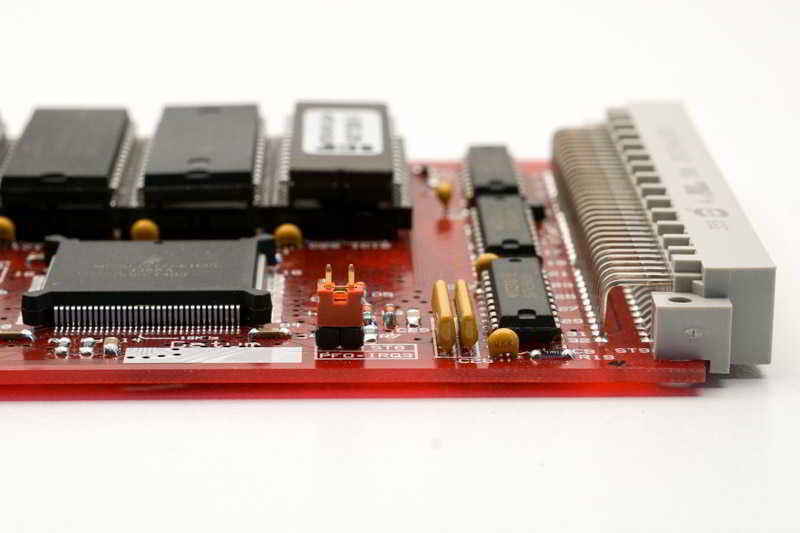

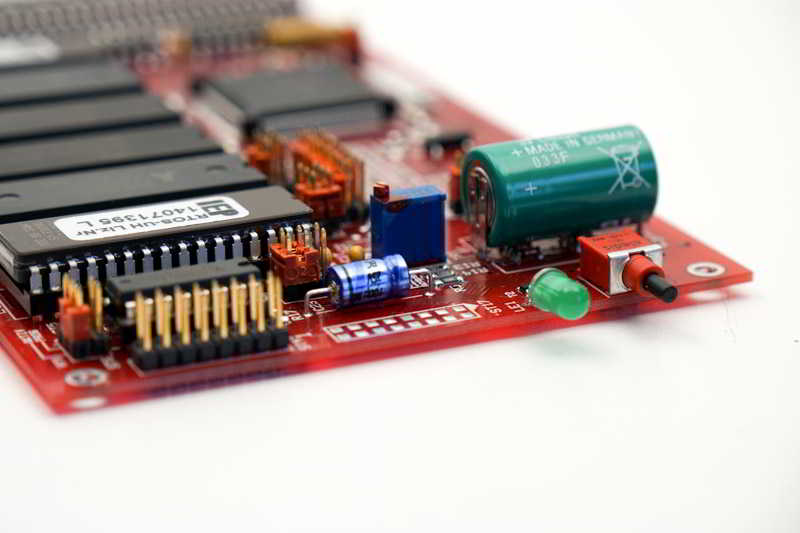

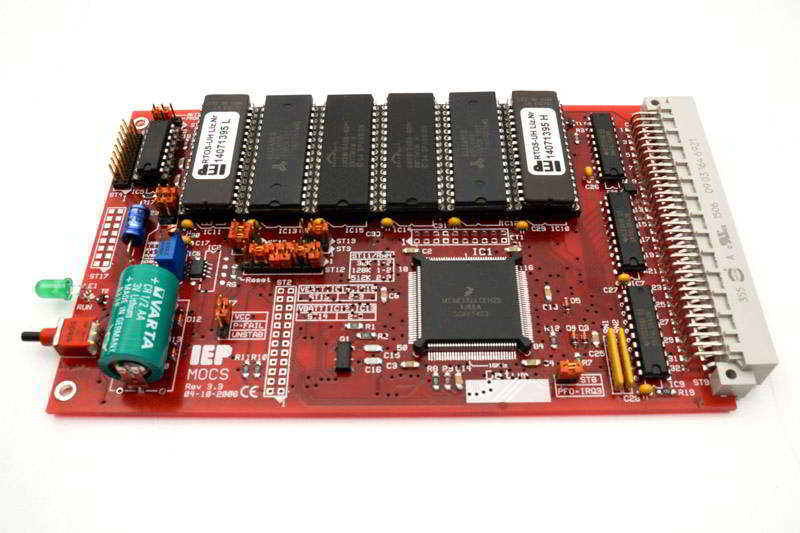

Based on the Motorola MC68332 microcontroller, the MOCS represents a stand-alone SBC. It provides
all the basic functions of an embedded computer core. Via the PBus, the MOCS is modularly expandable
for any special purpose.
The MOCS is particularly suitable for the realization of prototypes, single pieces or small series.

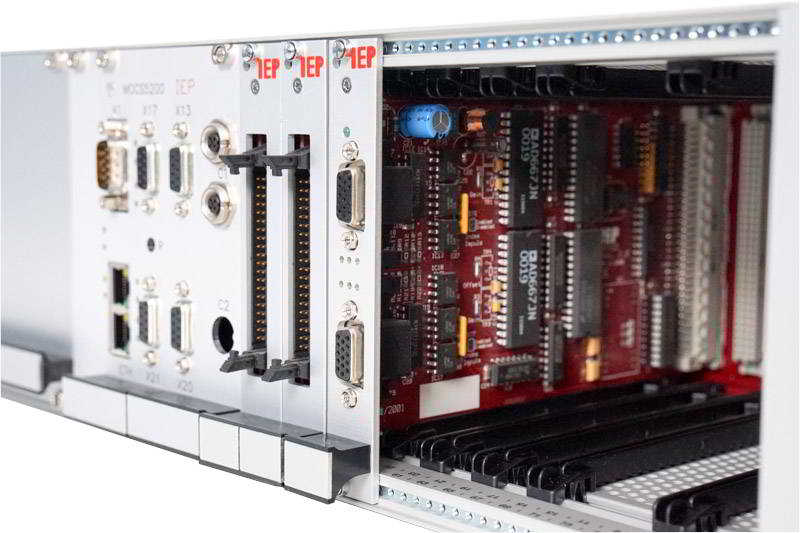

With our extensive range of PBus peripheral cards, a complete system adapted to the application can
be quickly assembled and tested.
Our development department will be happy to help you with the transition from small series to series
production! The development of a complete solution on a printed circuit board often offers serious cost
and assembly advantages over the flexible, modular solution. Already with quantities starting from
approx. 30 pieces. p. a. profitable special developments are possible!
The real-time operating system RTOS-UH is part of the
standard scope of delivery. CREST-C, PEARL
and CoDeSys are available as programming environments.
MC68332 |
up to 25 MHz |
RAM |
up to 2 MByte SRAM |
FLASH |
up to 1 MByte |
EPROM |
up to 1 MByte |
RTC |
Real Time Clock with calendar |
RS-232 |
5-wire RS-232 |
TPU |
TPU, total 16 channels motor control, serial interfaces etc. |
PORT |
16 I/O port lines |
BDM |
Debug-Port |
Supply voltage |
5V / 300mA |
Size |
160 x 100 x 40 mm |
Connection |
64p. PCB connector DIN41612 |
