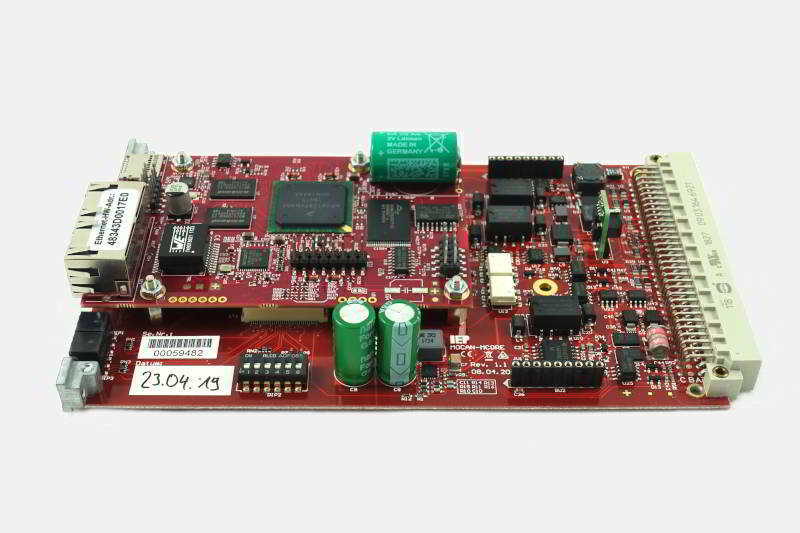

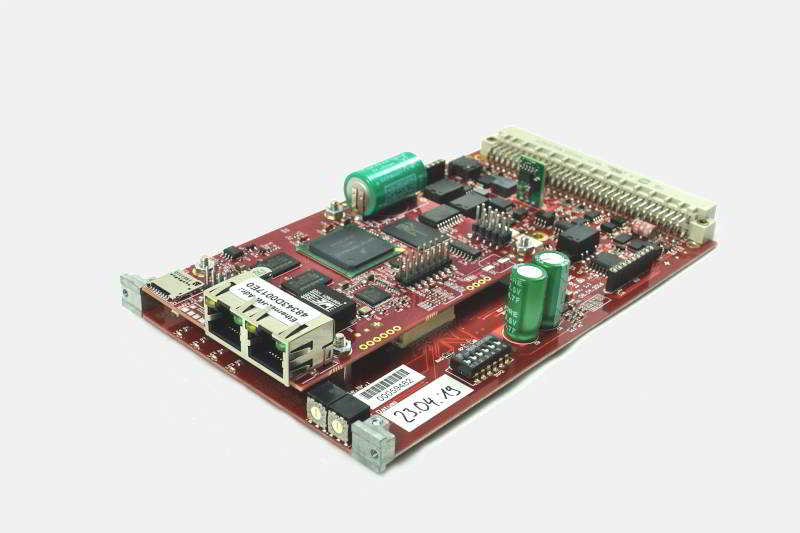

The MOCAN-METH is used as an intelligent node in Ethernet and CAN networks. With two independent
CAN channels (2.0b), up to 4 serial interfaces and digital inputs and outputs, it offers all the
essential basic functions of a controller. Further bidirectional port lines enable flexible adaptation,
e.g. to different system configurations.
The MOCAN-METH is based on the plug-in processor module CORE-5125.
Different expansion variants offer a problem-adapted scope of performance with optimum cost efficiency.
All connections are routed to the outside via a 64-pin PCB connector (DIN41612).
The real-time operating system
RTOS-UH
is standard. Programming is done in
ANSI-C,
PEARL 90 or in
IEC 61131-3.
Digital Inputs |
4x gal. insulated, 24V, interruptible |
Digital Outputs |
2x 24V / 0.5A; high-side |
Networking |

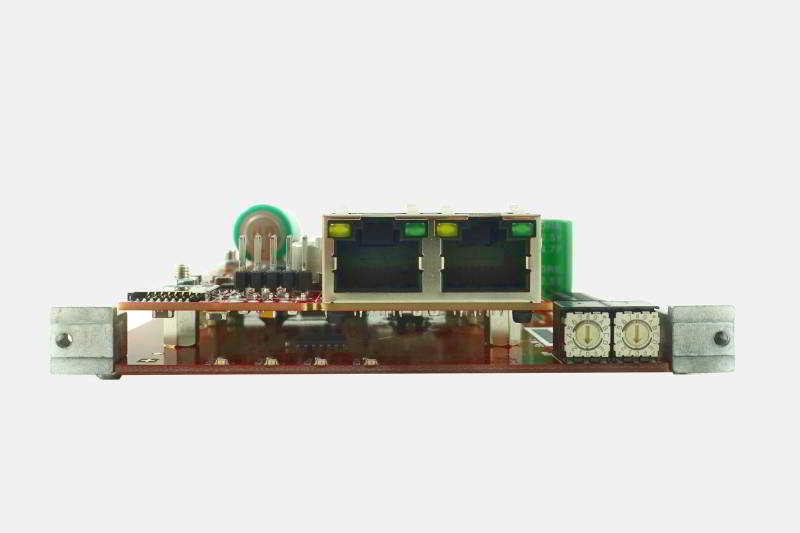

2x Ethernet 10/100BaseT
2x gal. insulated CAN bus up to 1MBaud
2x TTY 20mA passive gal. insulated |
Remanent Memory |
512 KB FRAM |
Option |
Slot for expansions |
USV |
7 sec, failure detection |
Supply voltage |
9-30V / 200mA |
Size |
160 x 100 x 30 mm |
