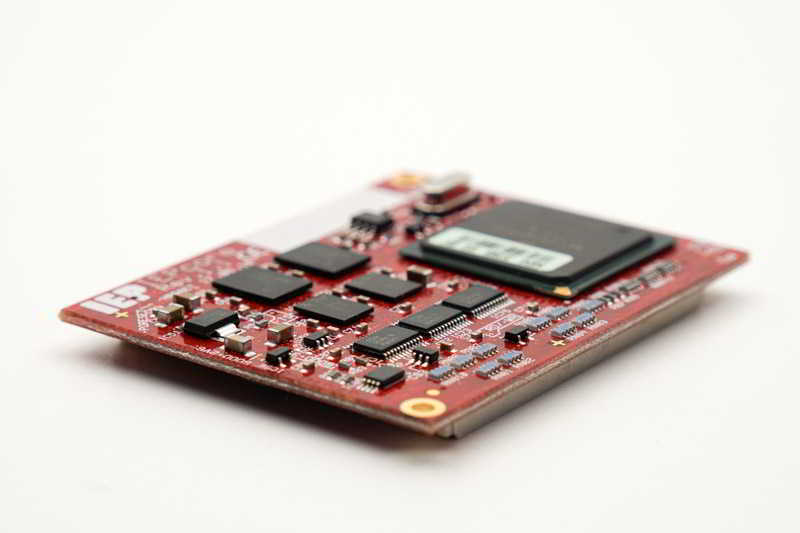

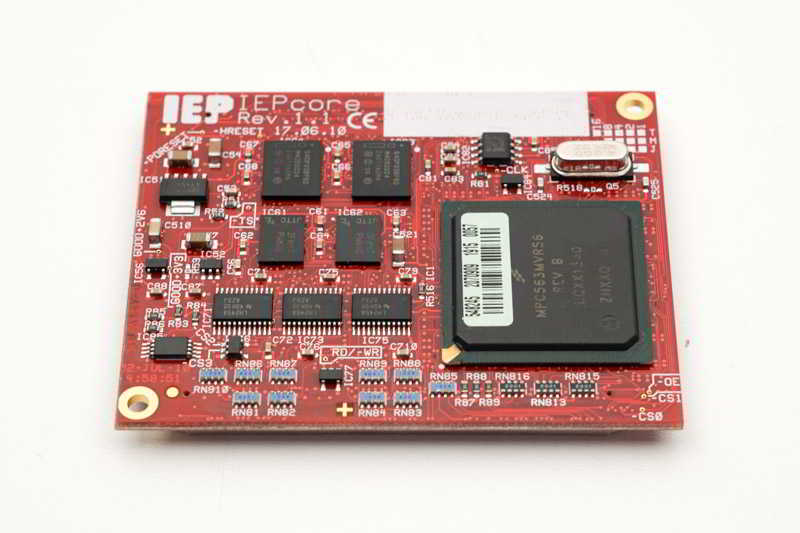

The CORE563 provides a powerful 32 bit PowerPC CPU. All core elements required for operation
(power supply, RAM, FLASH, RTC ...) are available on the CORE563. The numerous integrated
peripherals (TPU, MIOS, QADC, QSM, etc.) allow a wide range of applications without the
need for external components.
The special feature of the MCP563 is the Time Processing Unit, a dedicated computing kernel
that can perform numerous tasks autonomously. If the built-in functionality (PWM, quadrature decoder,
fast counter, combustion engine, serial interface ...) is not sufficient, own functions can be written.
The real-time operating system RTOS-UH is part of the
standard scope of delivery. CREST-C, PEARL
and CoDeSys are available as programming environments.
MPC563 |
PowerPC with 56 MHz, 64 Bit FPU (Floating Point Unit) |
RAM |
8 MByte PS-DRAM |
FLASH |
internally 512 KB, externally 8 MByte |
I²C-EEPROM |
4 KB EEPROM/FRAM/nvRAM |
RTC |
Real Time Clock with calendar external backup |
CAN |
up to 2 channels |
RS-232 |
2 channels 3-wire RS-232 |
TPU |
2x TPU3, total 32 channels motor control, serial interfaces etc. |
MIOS |
22 Timer channels |
QADC |
32 channels, 10 Bit resolution, 10 µs conversion time |
BDM |
Debug-Port |
Supply voltage |
5V / 50mA und 3,3 V / 400mA |
Size |
72 x 57 x 12 mm |
Connection |
2 pieces 160p. Connector |
