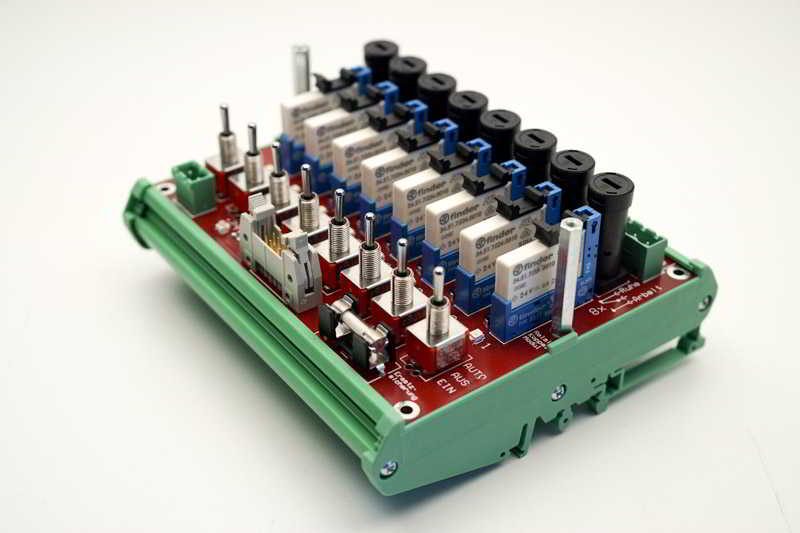

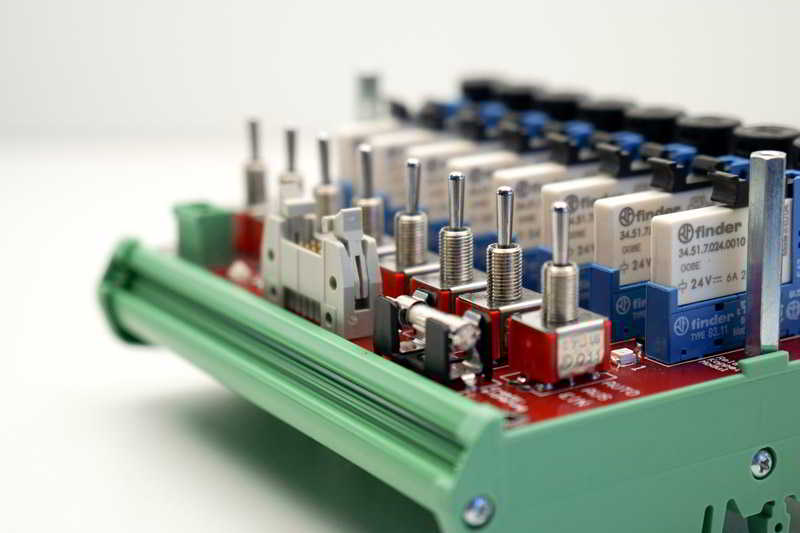

The relay coupling module provides 8 outputs. Each output can be individually equipped with a relay
(max. switching capacity 230V/5A AC) or a solid-state relay (230V/2A AC) and is protected by a fuse.
The control is carried out with 24V, other voltages (12V, 5V) are also possible if other relays are
selected. The 10 pole FLach cable connection has established itself as an industry standard.

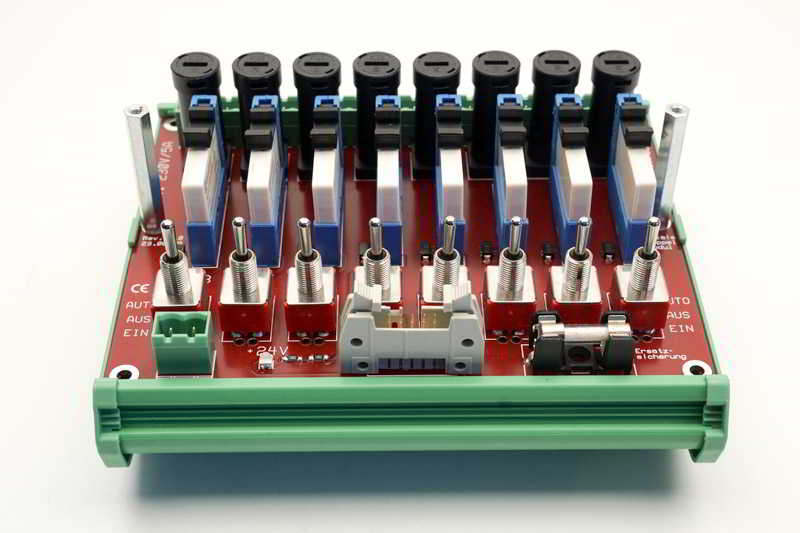

To facilitate commissioning, each channel can be individually controlled via a switch (ON - OFF - AUTO).
The position of the switches can be monitored to ensure that no switch is set to manual mode during
normal operation. The integrated LEDs indicate the switching status.
Channels |
8x Relais / SSR |
Control |
24V, freewheeling diode |
Indicatior |
LED yellow per channel LED green Operating voltage |
Switch |
ON - OFF - AUTO |
Fuse |
8x 5x20mm |
Relais |
Changeover 230Vac/5A
Motor load AC3: 185W Current DC1: 30/110/220V - 6/0.2/0.12A |
SSR |
Normally open contact 230Vac/2A
Zero voltage switch Temperature range -20..60°C |
Size |
140 x 122 x 65 mm |
