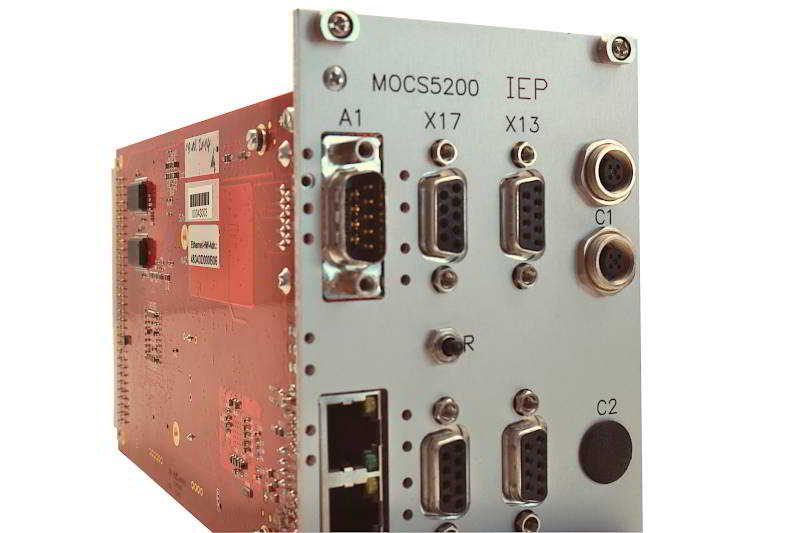

As a fast computer system, the MOCS5200 is predestined for applications that require both
outstanding real-time reactivity and high processor performance. A 400 MHz PowerPC MPC5200
with integrated FPU, originally designed by the processor manufacturer for use in car multimedia
systems, is the core of the MOCS5200.

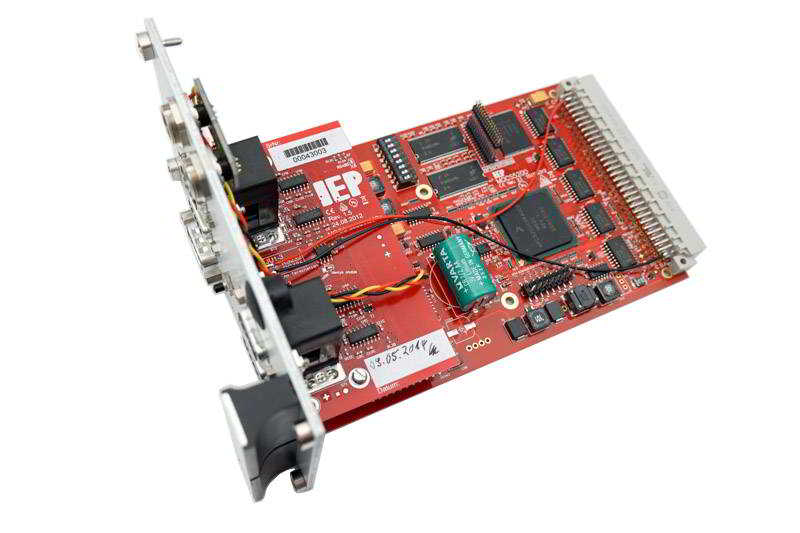

The MOCS5200 is realized in 160x100mm format (Euroboard). The basic map is 4 TE wide, the width
of the add-on is added.

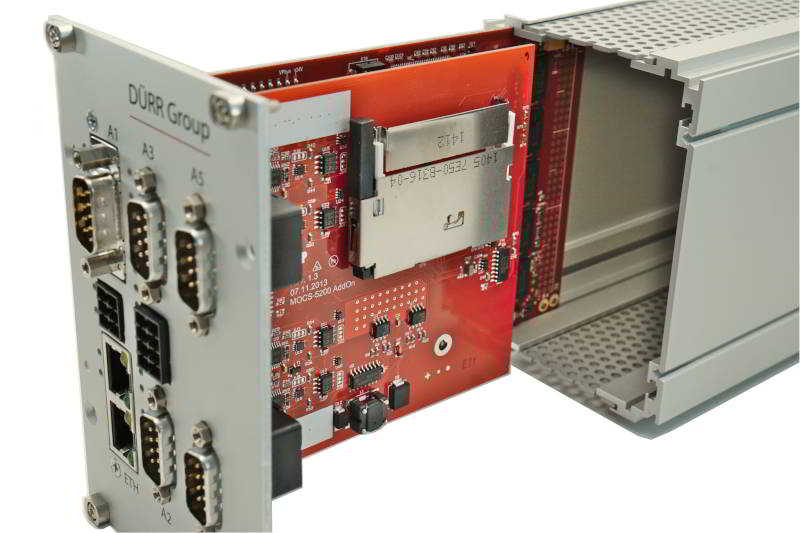

Further interfaces are available via different AddOns. Customer-specific AddOns can also be
implemented cost-effectively for small quantities.
The real-time operating system RTOS-UH is part of the
standard scope of delivery. CREST-C, PEARL
and CoDeSys are available as programming environments.
MOCS5200 |
PowerPC MPC5200 with 400 MHz FPU (Floating Point Unit) |
RAM |
128 MByte DDR-SDRAM |
FLASH |
32 MB |
I²C-EEPROM |
up to 64 KB EEPROM/FRAM/nvRAM |
Ethernet |
2 Port Switch 10/100 MBit Full-Duplex POE Supply optional |
RTC |
Real Time Clock with calendar Backup via battery/gold cap |
CAN |
1 Channel galvanically isolated |
RS-232 |
1 Channel 5-wire system interface |
PBus |
8/16 Bit wide |
BDM |
Debug-Port |
Supply voltage |
5V/500mA or 4,5...30Volt |
Size |
160 x 100 x 40 mm |
Connection |
64p. PCB connector DIN41612 |
AddOn 1
RS-232 |
4x RS-232/485 |
Dig. inputs |
24V, galvanically isolated |
Dig. outputs |
24V / 0.4A |
USB |
USB Host for Memory Sticks |
CF-Card |
removable media |
AddOn 2
RS-232 |
4x RS-232/485 |
CAN |
CANbus, not gal. insulated |
USB |
USB Host for Memory Sticks |
CF-Card |
removable media |
AddOn 3
RS-232 |
4x RS-232 over RJ45 |
