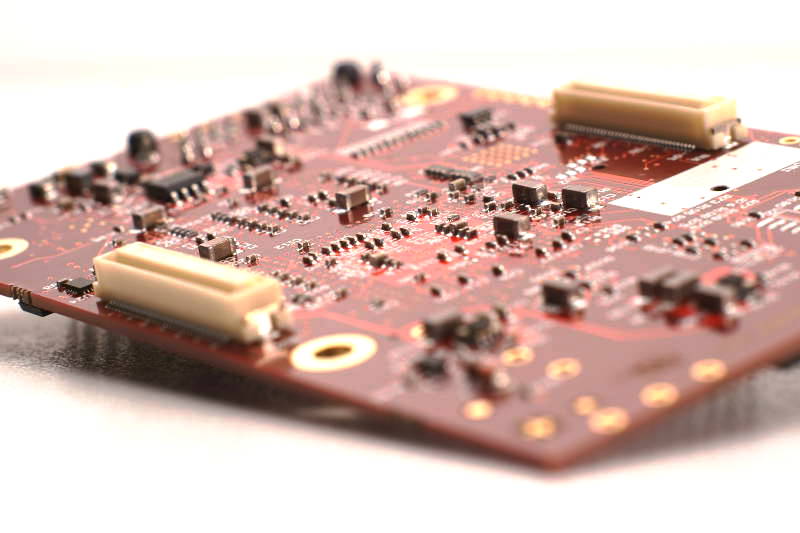

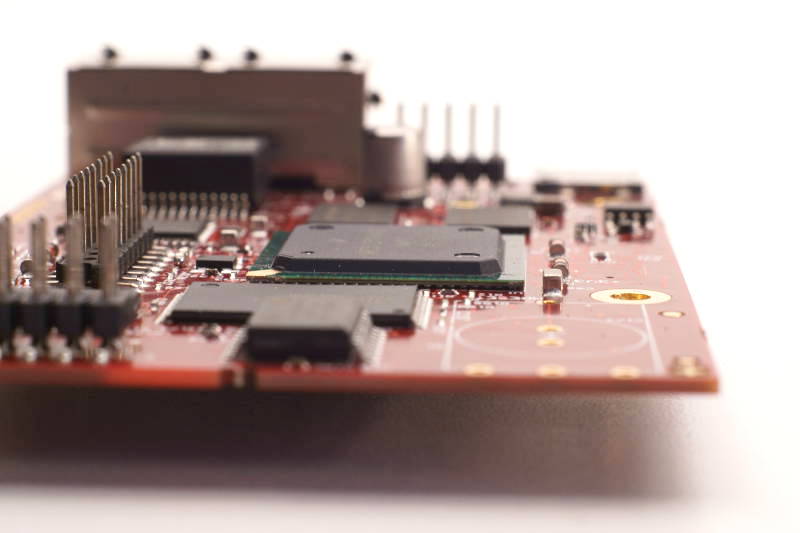

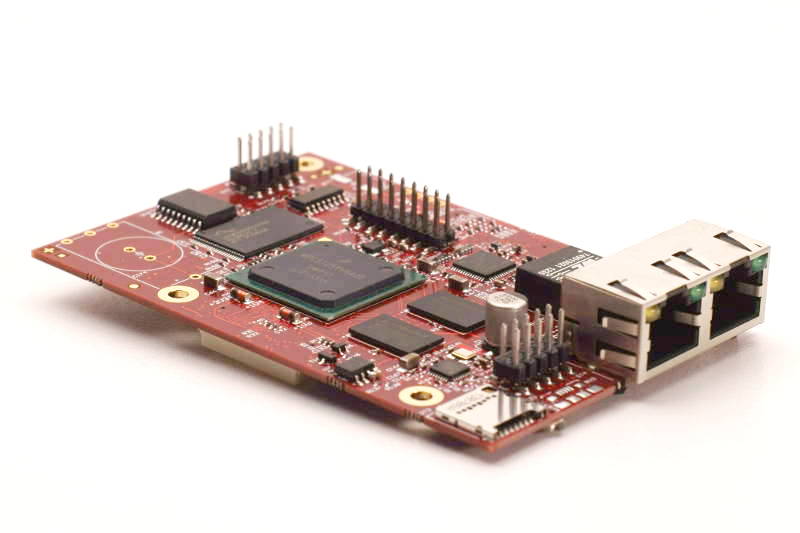

The CORE-5125 provides a powerful 32 bit PowerPC CPU. All necessary
Core elements (power supply, RAM, FLASH, RTC ...) are available on the CORE-5125. The numerous
integrated periphery (LCD, CAN, Ethernet, PWM, µSD-Card, digital I/O, etc.) enables a wide range of applications
without the need for external components.
The real-time operating system RTOS-UH is standard. The following programming environments are available
CREST-C, PEARL and CoDeSys.
The enormous adaptability of the CORE-5125 is the basis of many new developments in our company:
PK-TAG,
TC3004,
MOCAN-DK,
IF555-5,
MOCAN-METH,
RTP1. You can also use it to develop your own hardware
cost-effectively or have it developed by us.
| MPC5125 |
PowerPC with 400 MHz (800 MIPS at < 1 Watt)
FPU (Floating Point Unit) |
| RAM |
up to 512 MByte DDR2-SDRAM |
| FLASH |
up to 8 GB |
| I²C-EEPROM |
2 places for EEPROM/FRAM/nvRAM up to 256 KB |
| Ethernet |
2 Port Switch 10/100 MBit Full-Duplex
POE supply optional |
| USB |
USB 2.0 via µUSB socket |
| SD-Card |
Slot for µSD-Card |
| LCD |
Direct connection for LCD up to 1280x720 pixel resolution and 24 bit color depth
alternatively 18 bit color depth + 2 x CAN + 1 x I²C
alternatively 5 x PSC additional |
| RTC |
Real Time Clock with calendar
buffering via battery/goldcap |
| CAN |
up to 4 channels |
| RS-232 |
1 channel 5-wire system interface |
| PSC |
up to 4 Programmable Seriell Controller
RS232/422/485; SPI; Softmodem; AC97 |
| I²C |
1 channel free |
| Port-Pin's |
dig I/O, PWM ... |
| BDM |
Debug-Port |
| Supply voltage |
5V/500mA |
| Size |
100 x 65 x 18 mm |
| Connection |
2 pieces 80p. Connector |
